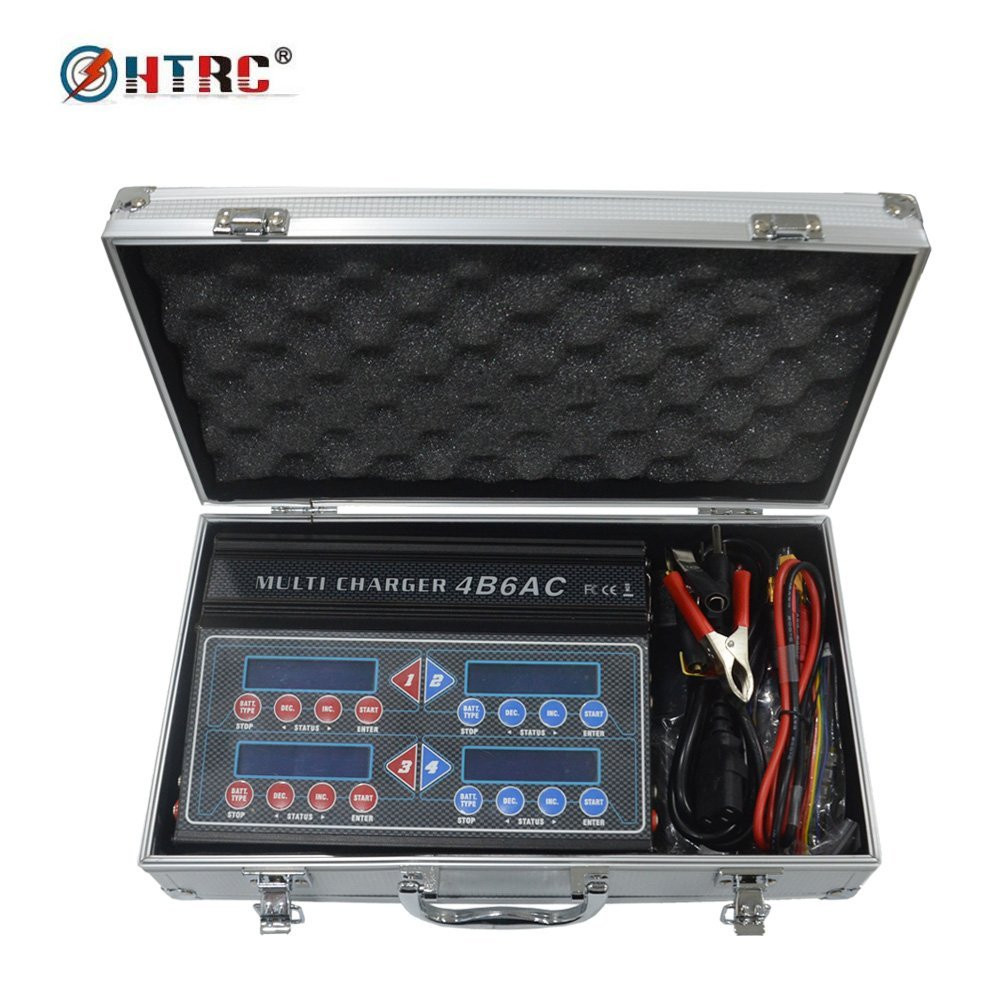

HTRC 4B6AC Multi charger 80W Quattro Professional Balance Charger/Discharge
Comes with every different wire/plug combo you can think of.
DESCRIPTION
QUATTRO B6AC allows you to plug 4 batteries into one charger simultaneously,
and it will intelligently and automatically charge all 4 of them at one time to their maximum capacity.
Moreover,the batteries being charged do not even need to have the same configuration.
You can connect different chemistry(Ni-MH/Ni-CD/LiPo/LiFe)batteries into any of the charging ports.
No more staying up late for charging batteries.
Function:
Charging.
Discharging.
Cycle Charging/Discharging (Ni-X).
Balancing (Li-XX)
Battery Voltage Displays(Li-XX)
Audable Warning Signals
Built In Safety Features
Compatible Batteies: Li-Po, Li-Fe,Li-ion, Ni-CD, Ni-MH PB.
Available Number of Cells:
Li-Po/Li-Fe/Li-ion:1- 6cells,
Ni-MH/Ni-CD:1-15 cells.
PB:1-10 cells 2-20V
Input Voltage AC:110V-240V .DC 11-18V
Charging Power: Max.50W x 4 (Total 200W))
Discharge Power:Max 5W x 4 (Total 20W)
Charging Current: 0.1 - 5.0A
Discharging Current: 0.1-1.0A
Dimension: 225 x170 x66mm Net Weight: 1.57kg
PRODUCT FEATURES
Features:
4 Independent Channel
AC/DC Dual Input mode.
Aluminum case with fan, high efficiency cooling
Multi working modes:Charge/Fast
Charge/Balance Charger/Discharge/Storage/Cycle Charge.
Battery Capacity/Voltage Displays
Individual cell voltage balancer.
Battery Internal Resistance Checking
Terminal Voltage Control,end voltage adjustable. cycle time adjustable.
Data Storage and Loading
Digital DC Power.
Audable Warning Signals
Built In Safety Features
Specification:
Input Voltage AC:110V-240V.DC 11-18V
Charging Power: Max.80W x 4 (Total 320W))
Discharge Power:Max 5W x 4 (Total 20W)
Charging Current: 0.1 - 6.0A
Discharging Current: 0.1-2.0A
Compatible Batteies: Li-Po, Li-Hv,Li-Fe,Li-ion, Ni-CD, Ni-MH PB, Smart Battery.
Available Number of Cells:
Li-Po/Li-Hv/Li-Fe/Li-ion:1- 6cells,
Ni-MH/Ni-CD:1-15 cells.
PB:1-10 cells 2-20V
Smart Battery I,II,III.
Dimension:23*17*6.5cm
Net Weight: 1.57kg
Package weight: 2.7kg
WARNING
USE A LiPo BALANCE BATTERY ON LiPo BATTERIES ONLY!
ALWAYS CHECK CELL VOLTAGES BEFORE AND AFTER CHARGING.
MINIMUM CELL VOLTAGE 3.3V. FULLY CHARGED VOLTAGE IS 4.20V CELL MAX. MAXIMUM CHARGE CURRENT 3C.
DO NOT LEAVE THE BATTERY UNATTENDED DURING CHARGING PROCESS.
ALWAYS USE A CHARGING BAG WHEN CHARGING.
STOP USING THIS BATTERY IF THE TEMPERATURE EXCEEDS 70C OR THE CELLS SWELL AND EXPAND. FAILURE TO COMPLY MAY RESULT IN AN EXPLOSION, FIRE AND VENTING OF THE CELLS.
NEVER REVERSE POLARITY OF THE CONNECTION. ALWAYS DOUBLE CHECK POLARITY OF BATTERY'S CONNECTOR TO MAKE SURE RED WIRE TO RED WIRE AND BLACK WIRE TO BLACK WIRE.
NiMH BATTERIES SHOULD BE CHARGED AT LEAST ONCE EVERY SIX MONTHS; OTHERWISE A NIMH BATTERY WILL REDUCE CAPACITY AND DIE.
